Pressure Gauge

Description

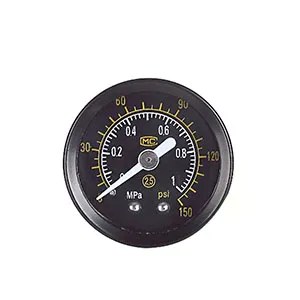

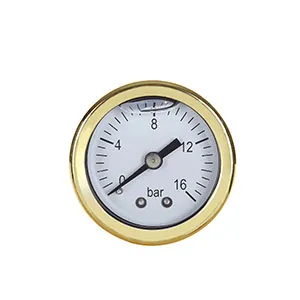

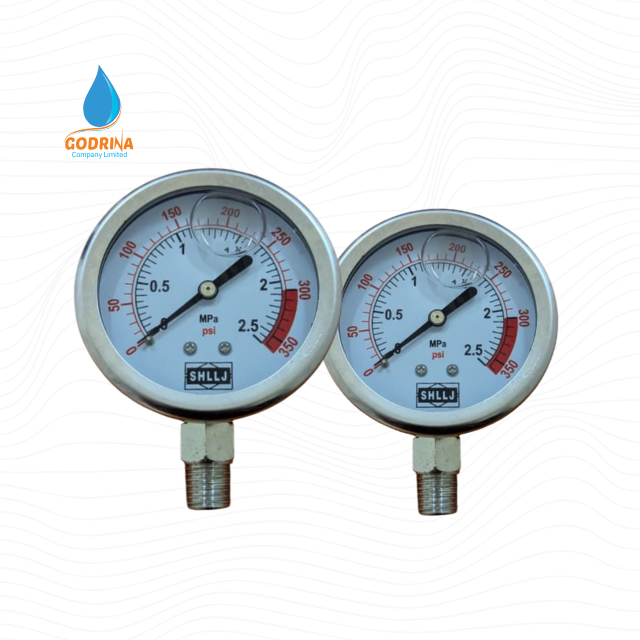

Product Images

Product Parameters

Diameter	Model Installiation	Measure Range	Screw Thread	Case Material	Accuracy
1 1/2″	Y-40 Bootom connection	0~15Psi 0~3500Psi	1/8″ NPT BSPT BSP M10×1	Steel SS 304 Plastic	±2.5
	Y-40Z Back connection
	Y-40ZT Back connection with border			Steel SS 304
2″	Y-50 Bootom connection	0~15Psi 0~3500Psi	1/8″ 1/4″ NPT BSPT BSP M14×1.5	Steel SS 304 Plastic	±2.5
	Y-50Z Back connection
	Y-50ZT Back connection with border			Steel SS 304
2″ 1/2″	Y-60 Bootom connection	0~15Psi 0~6000Psi	1/8″ 1/4″ NPT BSPT BSP M14×1.5	Steel SS 304 Plastic	±2.5
	Y-60Z Back connection
	Y-60ZT Back connection with border			Steel SS 304
3″	Y-75 Bootom connection	0~15Psi 0~3500Psi	4/8″ 3/8″ NPT BSPT BSP M14×1.5	Steel SS 304 Plastic	±2.5
	Y-75Z Back connection
	Y-75ZT Back connection with border			Steel SS 304
4″	Y-100 Bootom connection	0~15Psi 0~8500Psi	3/8″ 1/2″ NPT BSPT BSP M20×1.5	Steel SS 304 Plastic	±1.6
	Y-100Z Back connection
	Y-100ZT Back connection with border			Steel SS 304
6″	Y-150 Bootom connection	0~15Psi 0~8500Psi	3/8″ 1/2″ NPT BSPT BSP M20×1.5	Steel SS 304 Plastic	±1.6
	Y-150Z Back connection
	Y-150ZT Back connection with border			Steel SS 304
