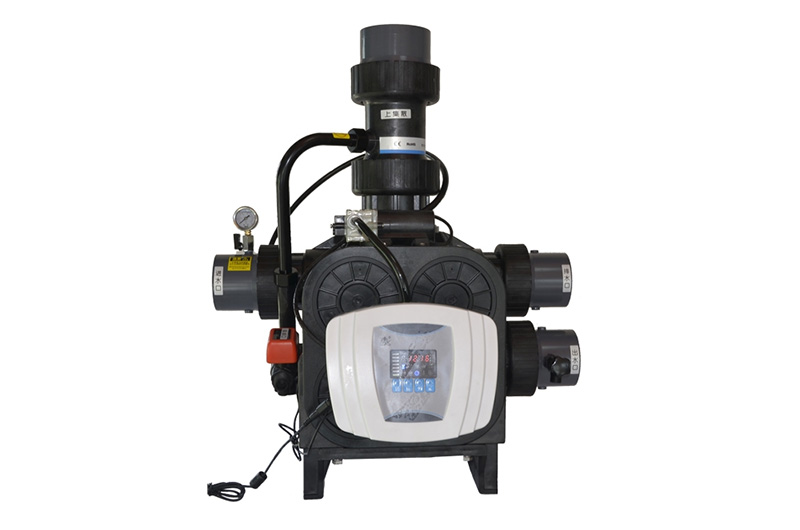

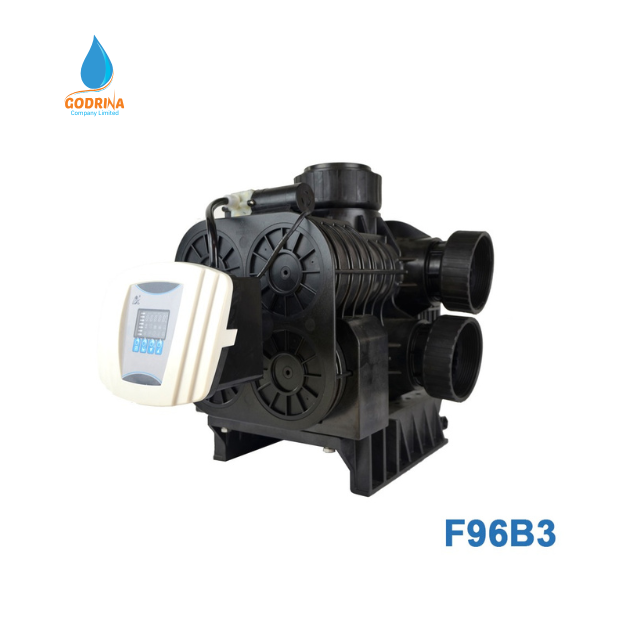

RUNXIN’s automatic multiport softener valves feature the highest productivity, as each type automatically carries out multiple functions, including service, backwash, brine& slow rinse, brine refill and fast rinse. Users simply need to modify the parameters, including the resin volume, original water hardness, and regeneration factor. These valves are widely used in water softening system applications, such as wastewater recycling, metal work, residential system and aquaculture.
Key Technical Specifications
-
- Flow Capacity: High-volume capacity of up to 50 m³/h.
- Connection Sizes: DN80 (3″ inch) inlet, outlet, and drain ports.
- Mounting Style: Side mount installation, which includes support components for heavy-duty setups.
- Working Pressure: 0.2 to 0.6 MPa (2 to 6 bar).
- Water Temperature: Safe for ordinary temperatures ranging from 5°C to 50°C.
- Tank Compatibility: Ideally paired with media filter tanks with a diameter of 36″ to 48″ inches.
Main Functions & Features
-
- 3-Stage Logic: Features 3 operating modes: Service (Filter) → Backwash → Fast Rinse.
- Hermetic Ceramic Seal: Built with highly durable, corrosion-resistant corundum ceramic disks that prevent internal leaks and extend the service life.
- Hydraulically Balanced Piston: Employs a linear piston mechanism to shift water passages smoothly without requiring heavy motorized torque.
- Data Retention: Contains an LED/LCD display that can save configuration data for up to 3 days in case of a sudden power outage.
- Interlock System: Supports remote handling connectors and an interlock system to coordinate multiple valves when operating in a parallel system.
