Prominent Beta 4 Dosing Pumps
Description

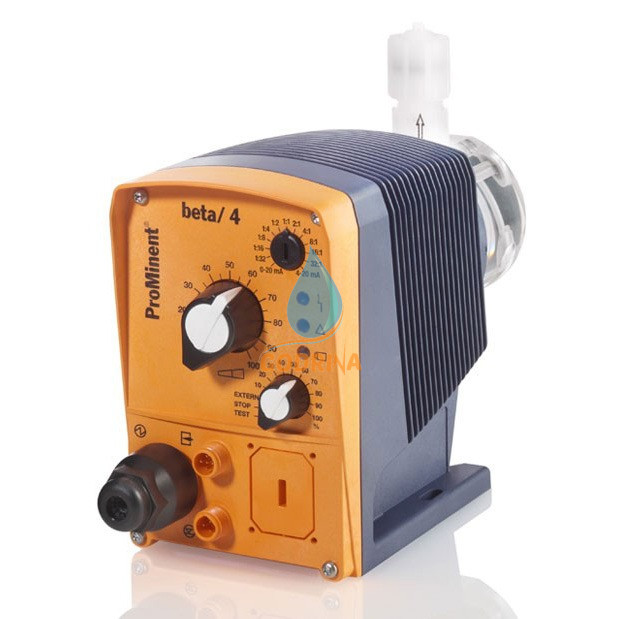

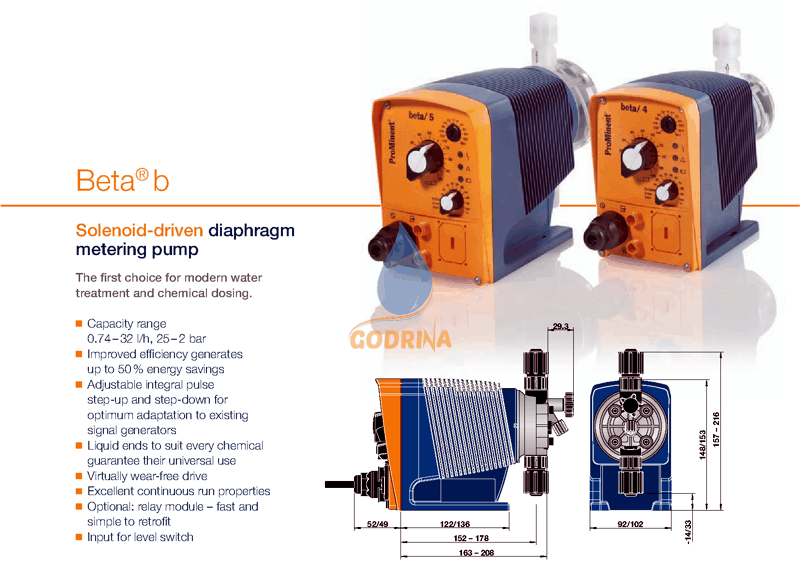

Solenoid-Driven Metering Pump beta
Equipped with all the features and properties for superior process
management.
Exemplary representation. The dimensions depend on the configuration chosen.
All-purpose solenoid-driven metering pump for metering liquid media in water treatment and chemical processes:
Solenoid-driven metering pump beta. Cost-effective, overload-proof, adaptable to existing signal transducers.
Technical Details
■ External control via potential-free contacts with pulse step-up and step-down to adapt to existing
signal transducers of 64:1 to 1:64
■ Optional external control via 0/4 – 20 mA and potential-free contacts with pulse step-up and step-
down of 32:1 to 1:32
■ Stroke rate adjustment in 10% increments of 10 – 100% corresponds to 18 – 180 strokes/minute
■ Continuous stroke length adjustment of 0 – 100% (recommended 30 – 100%)
■ Connector for 2-stage level switch
■ Wide-range electrical connection: 100 – 230 V, 50/60 Hz
■ Optional relay module, can also be retrofitted easily and securely
■ Low voltage design 12 – 24 V DC
