Description

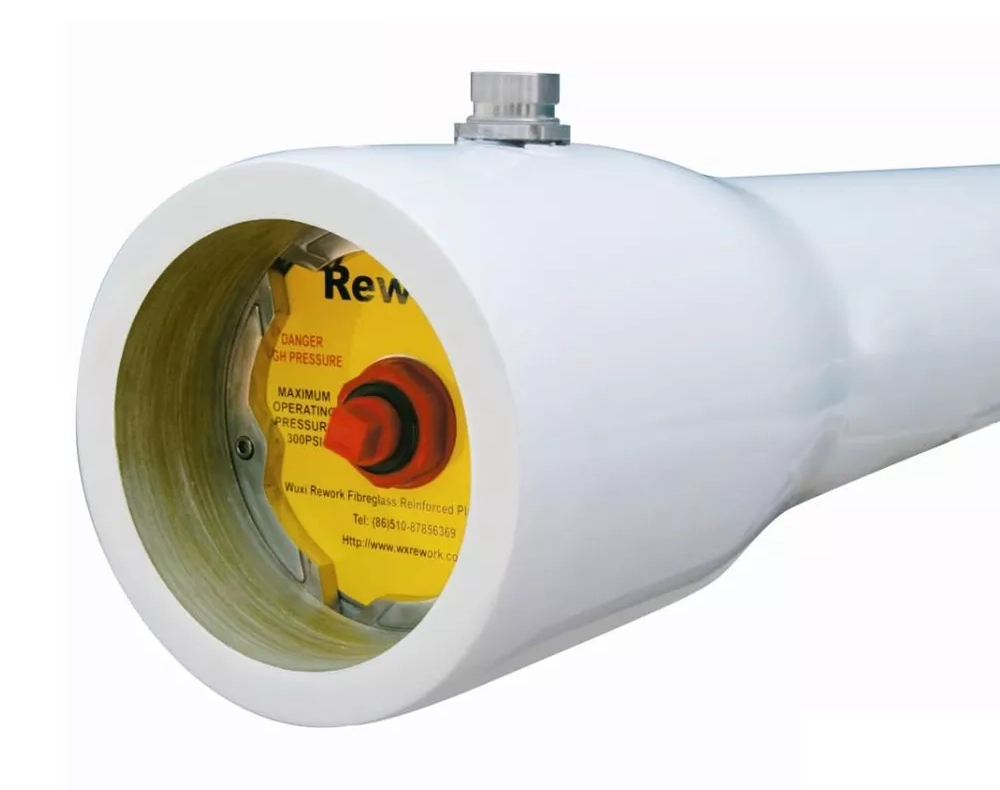

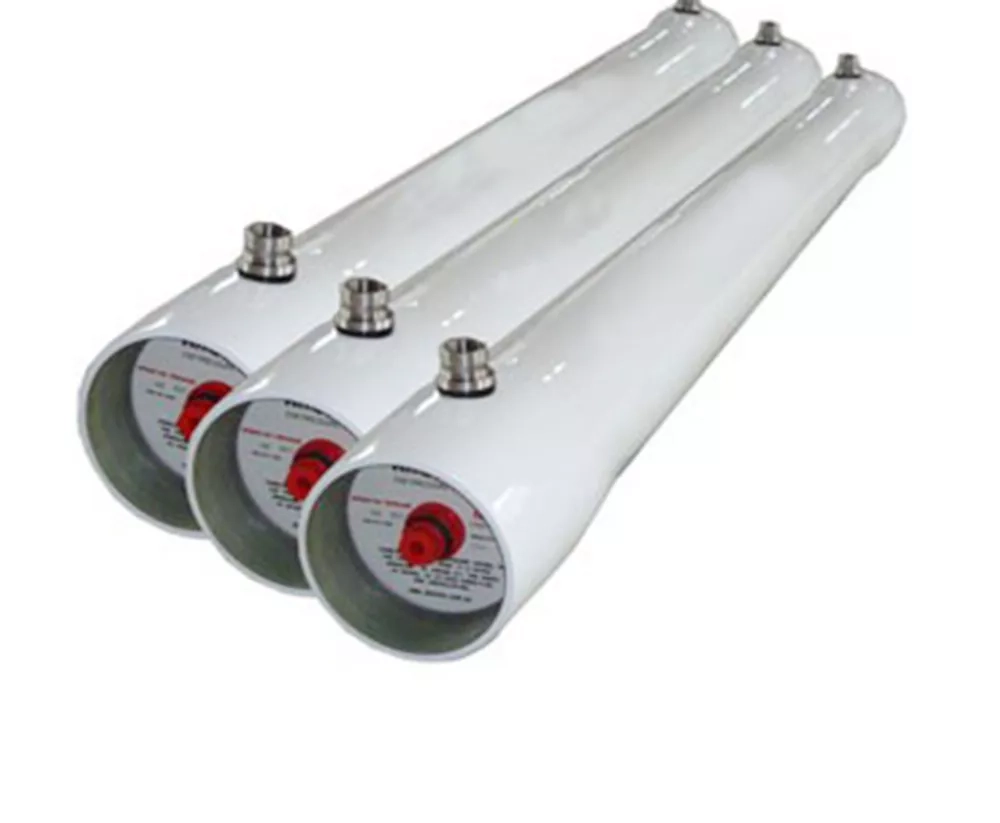

2540 RO Membrane Housing/FRP Pressure Vessels
MAIN TECHNICAL FEATURE
| Product Name: |
2540 RO Membrane Housing/FRP Pressure Vessels |
| Material: |
FRP |
| Pressure: |
150/ 300/ 450/ 600/ 1000/ 1200psi |
| Size: |
4040 and longer |
| Connection: |
End port or side port |
|
Let’s begin to communicate Contact us |
| Model |
PS PSI(MPa) |
Connection |
Membrane size |
Number of elements |
| UMK-80S150 |
150(1.0) |
SIDE |
8040 |
1-8 |
| UMK-80S300 |
300(2.1) |
SIDE |
8040 |
1-8 |
| UMK-80S450 |
450(3.1) |
SIDE |
8040 |
1-8 |
| UMK-80S600 |
600(4.1) |
SIDE |
8040 |
1-8 |
| UMK-80S1000 |
1000(6.9) |
SIDE |
8040 |
1-8 |
| UMK-80S1200 |
1200(8.4) |
SIDE |
8040 |
1-8 |
| Model |
PS PSI(MPa) |
Connection |
Membrane size |
Number of elements |
| UMK-80E150 |
150(1.0) |
END |
8040 |
1-8 |
| UMK-80E300 |
300(2.1) |
END |
8040 |
1-8 |
| UMK-80E450 |
450(3.1) |
END |
8040 |
1-8 |
| UMK-80E600 |
600(4.1) |
END |
8040 |
1-8 |
| UMK-80E1000 |
1000(6.9) |
END |
8040 |
1-8 |
| UMK-80E120 |
1200(8.4) |
END |
8040 |
1-8 |
| Model |
PS PSI(MPa) |
Connection |
Membrane size |
Number of elements |
| UMK-40S150 |
150(1.0) |
SIDE |
8040 |
1-4 |
| UMK-40S300 |
300(2.1) |
SIDE |
8040 |
1-4 |
| UMK-40S450 |
450(3.1) |
SIDE |
8040 |
1-4 |
| UMK-40S600 |
600(4.1) |
SIDE |
8040 |
1-4 |
| UMK-40S1000 |
1000(6.9) |
SIDE |
8040 |
1-4 |
| Model |
PS PSI(MPa) |
Connection |
Membrane size |
Number of elements |
| UMK-40E150 |
150(1.0) |
END |
4040 |
1-4 |
| UMK-40E300 |
300(2.1) |
END |
4040 |
1-4 |
| UMK-40E450 |
450(3.1) |
END |
4040 |
1-4 |
| UMK-40E600 |
600(4.1) |
END |
4040 |
1-4 |
| UMK-40E1000 |
1000(6.9) |
END |
4040 |
1-4 |
CHARACTERISTICS
Membrane pressure vessels characteristic
Composite construction is anti-wearable.
Test every membrane housing, not sampling.
Electrically non-conductive.
Resistance to corrosion, oxidation & aging.
Well heat-insulting property.
High sealing pressure performance.
Mirror inner wall and brightly surface.
Standard and non-standard are all available.
Spare parts:
End plate adopts aerial processing technique, eficiently improving the intensity and capacity to resist deformation
Seal kit adopts special structure and technique,efcienty enhancing the leak tightness
End-plate made of aluminum alloy.enhance the ability to resist deformation
Seal kit adopts environmental material to assure the leak tightness and high water quality, meanwhile to improve its anti-aging capacity
Inlet and outlet are made of high quality stainless stee 316L materials, which have a strong ability to resistance corrosion, easy to
disassembly, assembly, maintenance
PRODUCT DISPLAY
Product details
The product production
Product Parameters
| ITEM NO. |
PSI(MPa) |
Connection |
Membrane size |
Number of elements |
| UMK40E150 |
150(1.0) |
END |
4040 |
1-4 |
| UMK40E300 |
300(2.1) |
END |
4040 |
1-4 |
| UMK40E450 |
450(3.1) |
END |
4040 |
1-4 |
| UMK40E600 |
600(4.1) |
END |
4040 |
1-4 |
| UMK40E1000 |
1000(6.9) |
END |
4040 |
1-4 |
Packaging
We wrap the film shell tightly in a paper box.
