Description

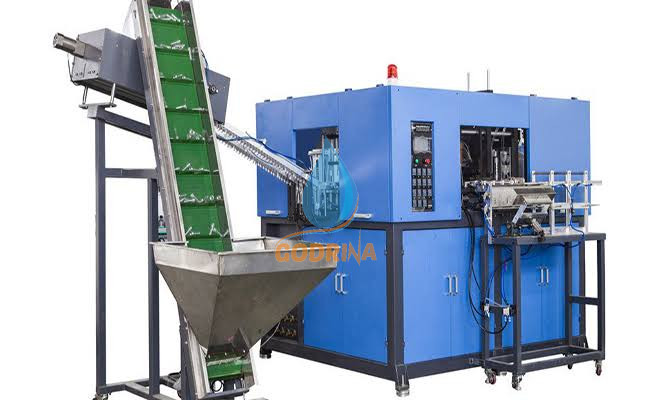

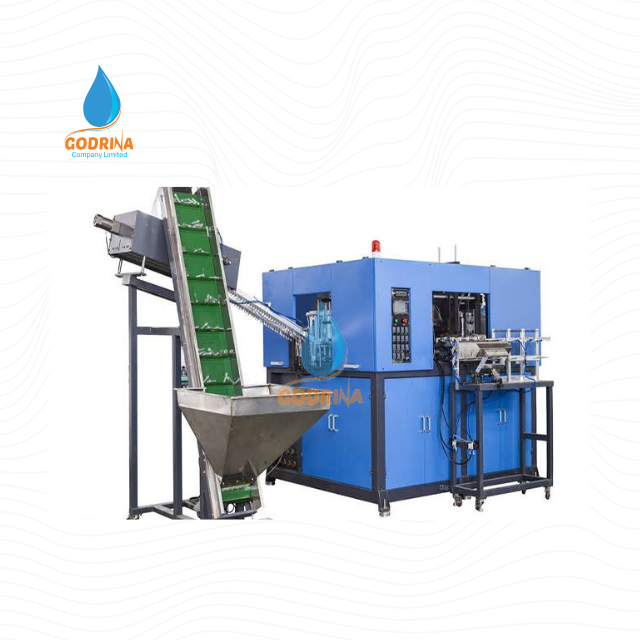

Automatic Blow Moulding Machine for Making PET Bottle
| Brief Introduction | |||||||||||||||||||||||||||||||||||||||||
| RM-2000 type full-auto pet stretch bottle blow molding machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 2000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles. 1.New double crank four pull-up bar clamping structure, cross balance fixed slide 2.Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding 3.Advanced gas path design, single, dual air intake can be; low-pressure mechanical clamping, sealing, stretching; high pressure blowing molding 4.Programmable PLC controller automatically control, microcomputer touch screen convenient operation 5.Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision |
|||||||||||||||||||||||||||||||||||||||||
| Specification | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Character | |||||||||||||||||||||||||||||||||||||||||
| A .This type bottle molding machine adopts advanced microcomputer control system, stable performance, the conveyor automatically send embryo; B .The bottle molding machine uses infrared heating lamps, penetrating power strong, embryo heated while rotation, orbital revolution, heating uniformity, rapid and reliable; C.Light tube in heating area, reflector width and height can be adjusted to suit the different structure preform heating, and automatic exhaust temperature device in order to ensure constant temperature of the drying tunnel; D.The bottle molding machine has a safety self-locking device, when a processes have problem, the program will automatically switch to a safe state; E.All the action drive by the cylinder,do not use pumps,with no pollution, low noise; F.Gas way design divide action and air blowing into three parts, action to meet the needs of the different pressure of the blowing, action; G.Cooling system to achieve the desired cooling effect; H.The bottle scrap rate less than 0.2%. |
|||||||||||||||||||||||||||||||||||||||||
