1.Food grade stainless steel,safe and pollution free.
2.Precision sealing structure,dripping water does not leak.
3.Simple structure,easy to replace, clean.

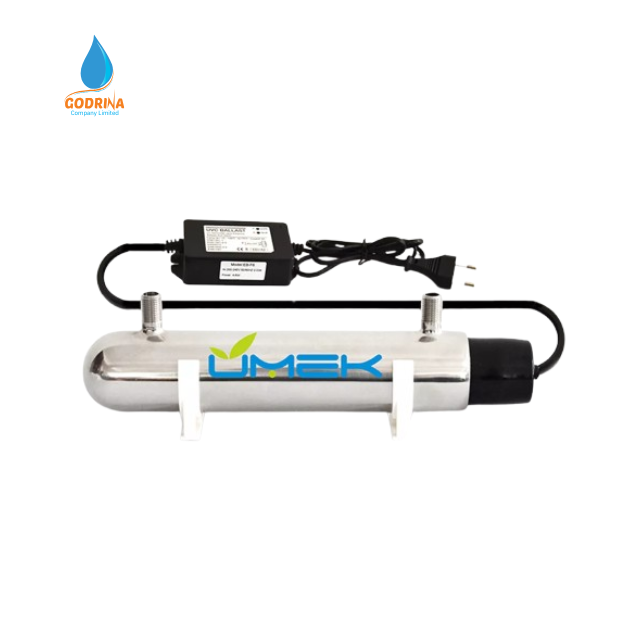

4.External split ballast, self-developed products with excellent characteristics to ensure stable operation of the lamp.
5.lnternational safety standard plugs and wires.
Product Application
 Swimming Pool Water |
|
 Campus Water Seilization |
|
 Non-Soil Cltvation |
Parameter
| Model |
Flow Rate @ 30mj/cm² |
Lamp Watts |
Inlet/outlet Port |
Reactor Size(mm) |
| GPM |
TPH |
L |
W |
H |
| AMD-RUV-4 |
0.3 |
0.07 |
4 |
1/4″ F Thread |
200 |
51 |
70 |
| AMD-RUV-6 |
0.5 |
0.12 |
6 |
1/4″ F Thread |
260 |
51 |
70 |
| AMD-RUV-11 |
1 |
0.23 |
11 |
1/4″ F Thread |
260 |
51 |
70 |
| AMD-RUV-16 |
2 |
0.45 |
16 |
1/2″ F Thread |
375 |
63 |
80 |
| AMD-RUV-25 |
6 |
1.4 |
25 |
1/2″ F Thread |
518 |
63 |
90 |
| AMD-RUV-30 |
8 |
1.8 |
30 |
3/4″ F Thread |
975 |
63 |
90 |
| AMD-RUV-40 |
10 |
2.3 |
40 |
3/4″ F Thread |
890 |
63 |
90 |
| AMD-RUV-40 |
12 |
2.7 |
40 |
1″ F Thread |
920 |
63 |
90 |
| AMD-RUV-55 |
12 |
2.7 |
55 |
3/4″ F Thread |
975 |
63 |
90 |
| AMD-RUV-80 |
24 |
5.5 |
80 |
1″ F Thread |
950 |
63 |
90 |
UV Light Purification Advantage Than Others Way
| Methods |
UV |
Chlorination |
Ozone |
| Destruction |
Physical |
Chemical |
Chemical |
| Capital Cost |
Low |
Medium |
High |
| Operating Cost |
Low |
Medium |
High |
| Maintenance Cost |
Low |
Medium |
High |
| Maintenance Frequency |
Low |
Medium |
High |
| Disinfection Performance |
Excellent |
Very good |
Unpredictable |
| Contact time |
1-5 Seconds |
25-24 minutes |
5-10 Minutes |
| Persanal Hazards |
Low |
Medium |
High |
| Toxic Chemicals |
No |
Yes |
Yes |
| Water Chemistry Change |
No |
Yes |
Yes |
| Residual Effect |
No |
Yes |
Yes |
